Symbols Used in Electronics Projects Schematics

Part of the Electronics Projects For Dummies Cheat Sheet

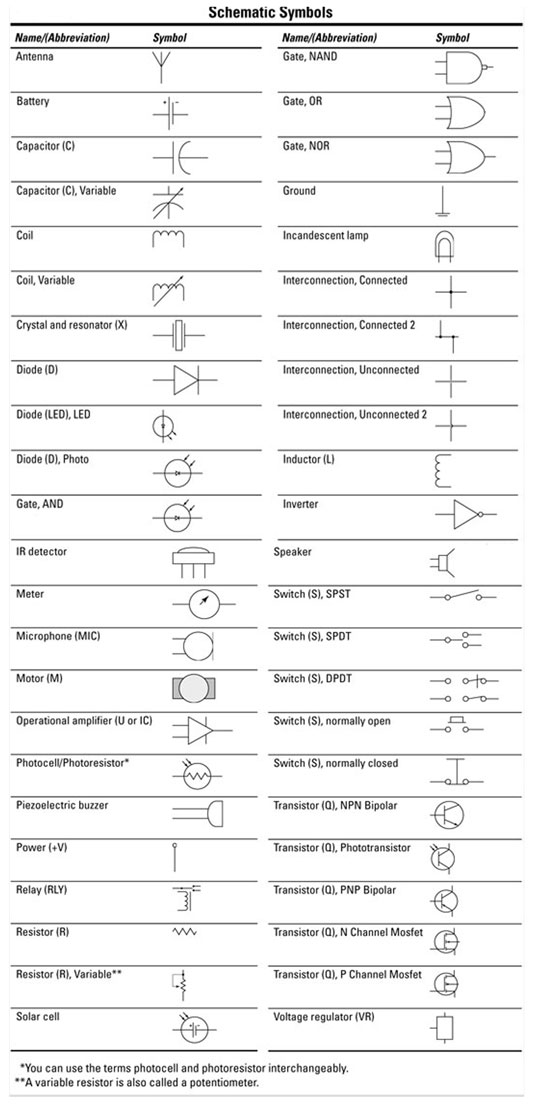

If you get involved in electronics projects — building radios or metal detectors or motion detectors or whatever — it helps to know the symbols used in schematics. The symbols in the following list are those commonly used in North America and Japan; other countries use slight variations on these symbols:
