Smart Interaction (SI) Voice Recognition for Samsung SmartTV Applications

The SI voice recognition feature starts when a user speaks a preset start command, or presses the voice recognition button on a smart controller. The start command can be changed on the Samsung SmartTV’s configuration menu.


The following charts demonstrates how the SI API handles a user’s voice recognition command.

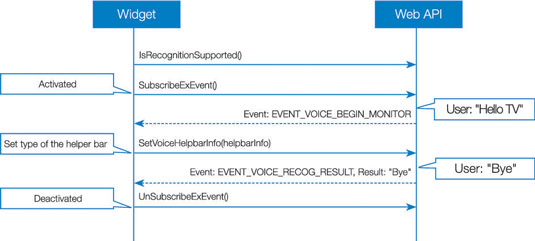

Voice Recognition Flow Chart: When Initiated by a User’s Preset Start Command
Voice Recognition Flow Chart: When Initiated by a User’s Preset Start Command

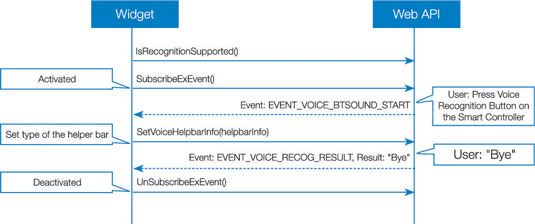

Voice Recognition Flow Chart: When Initiated by a Voice Recognition Button
Voice Recognition Flow Chart: When Initiated by a Voice Recognition Button

Activating voice recognition

Once the preceding preparation is done, set the voice element to “y” in the config.xml file to enable the application of the voice recognition feature.

config.xml
<voice itemtype="string">y</voice>

Registering voice recognition

Use the Web API SubscribeExEvent() function to register voice recognition.

The SubscribeExEvent( ) Function
Function SubscribeExEvent
Version Support from RECOGNITION-0001
Security Type RECOG
Usage SubscribeExEvent( PL_RECOGNITION_TYPE type, String name, function callback)
Return Value Void
Display on the Emulator “The voice recognition result is returned with the callback function.”
(Result of voice recognition is returned by callback function)

The Parameters of the SubscribeExEvent( ) function follow:

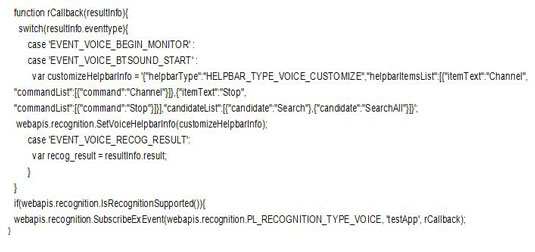

Following is an example of the SubscribeExEvent( ) function:


Unregistering an event

Use the UnsubscribeExEvent() function to unregister an event that was previously registered with the SubscribeExEvent() function.

The UnsubscribeExEvent( ) Function
Function UnsubscribeExEvent
Version Support from RECOGNITION-0001
Security Type RECOG
Usage UnsubscribeExEvent( PL_RECOGNITION_TYPE type, String name)
Return Value 1 (Success)
0 (Failure)
Display on the Emulator Always 1 is returned

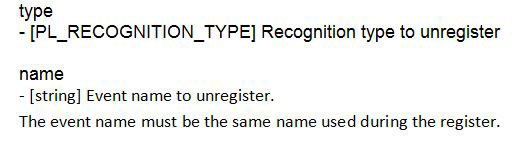

The Parameters of the UnsubscribeExEvent( ) function follow:


Following is an example of the UnsubscribeExEvent( ) function:


An application must use the UnsubscribeExEvent() function and unregister registered events on exit. Set up this exception handling in the window.onunload handler.


Event handling

Samsung SmartTV runs the registered callback function when voice recognition is started. The function receives the event object as its parameter, which returns event type, result, and a few other properties.

The next table lists the event types.

Voice Recognition Event Types
Event type Description
EVENT_VOICE_BEGIN_MONITOR User spoke the start command
EVENT_VOICE_BTSOUND_START User pressed the voice recognition button on a smart controller
EVENT_VOICE_RECOG_RESULT The TV returns the voice recognition result

The result value holds the recognized user voice input.
