Decision Commands on the TI-84 Plus

The TI-84 Plus graphing calculator can handle three decision commands (If, If . . . Then . . . End, and If . . . Then . . . Else . . . End) in a program.

The If command on the TI-84 Plus

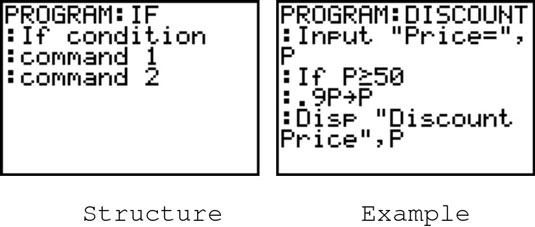

The structure of the If command appears in the first picture. If the condition following the If command is true, the program executes the command following the If statement (command 1) and then moves on to the next command in the program (command 2).

If the condition following the If command is false, the program skips the command following the If statement (command 1) and then moves on to the next command in the program (command 2).

An example of using the If command appears in the second picture. The program in this picture gives a 10 percent discount on items that cost $50 or more. The input and output commands (Input, Disp) in this program are housed in the Program I/O menu, which is accessed by pressing


You can enter the inequality that appears in this picture by pressing [2nd][MATH][4].


The If . . . Then . . . End command on the TI-84 Plus

The structure of the If . . . Then . . . End command appears in the first picture. If the condition following the If command is true, the program executes the commands between Then and End (commands 1) and then moves on to the next command in the program (command 2).

If the condition following the If command is false, the program skips the commands between Then and End (commands 1) and then continues on to the next command in the program (command 2).

An example of using the If . . . Then . . . End command appears in the second picture. The program in this picture gives a 10 percent discount on items that cost $50 or more and then takes off another $10 if the discounted cost is over $100.


The If . . . Then . . . Else . . . End command on the TI-84 Plus

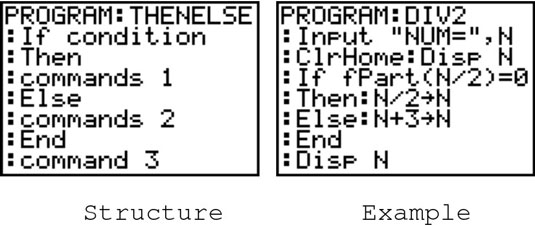

The structure of the If . . . Then . . . Else . . . End command appears in the first picture. If the condition following the If command is true, the program executes the commands between Then and Else (commands 1), skips the commands between Else and End (commands 2), and then moves on to the next command in the program (command 3).

If the condition following the If command is false, the program skips the commands between Then and Else (commands 1), executes the commands between Else and End (commands 2), and then moves on to the next command in the program (command 3).

An example of using the If . . . Then . . . Else . . . End command appears in the second picture. The program in this picture divides a number by 2 if it is even, or adds 3 to the number if it isn’t.
