Color Swatch Panel in Photoshop Elements 10

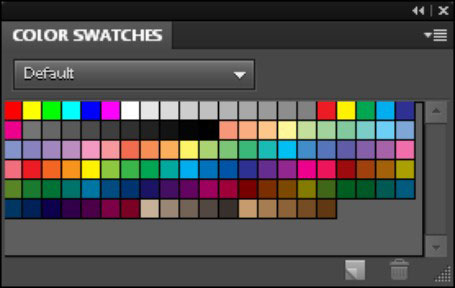

Photoshop Elements 10 enables you to choose a foreground or background color by selecting a color on the Color Swatches panel. The Color Swatches panel is a digital version of the artist’s paint palette. In addition to preset colors, you can mix and store your own colors for use now and later.

You can have palettes for certain types of projects or images. For example, you may want a palette of skin tones for retouching portraits. Choose Window→Color Swatches to bring up the panel.


To grab a color from the Color Swatches panel, click the color swatch you want. By the way, it doesn’t matter which tool you have. As soon as you move the tool over the panel, it temporarily converts to an eyedropper that samples the color and makes it your new foreground or background color.

Although the Color Swatches panel is a breeze to use, here are a few tips to help you along:

  • Change the background color. Either first select the background swatch on the Tools panel or Ctrl-click (Command-click on the Macintosh) a swatch.

  • Use preset colors. To load a particular preset swatch library, select it from the Color Swatches panel menu. Elements offers libraries specific to Web graphics, photo filters, and Windows and Mac OS systems.

  • Add a color to the Color Swatches panel. Choose New Swatch from the panel menu. You can also simply click an empty portion of the panel. Name your swatch and click OK.

  • Save swatches. Choose Save Swatches from the panel menu in the upper-right corner of the panel. Save the swatch library in the default Color Swatches folder in the Presets folder. If by chance this folder doesn’t come up by default, just navigate to the Color Swatches folder by following this partial path: Adobe\Photoshop Elements 10.0\Presets\Color Swatches (Windows) or Adobe\Adobe Photoshop Elements 10\Presets\Color Swatches (Macintosh).

  • Save swatches for Exchange. Choose this command to save your swatches for use in another Adobe program. Name the swatch set, and save it in the same folder listed in the above bullet.

  • Load swatches. If you want to load a custom library created by you or someone else, choose Load Swatches from the panel menu. In the dialog box, select your desired library from the Color Swatches folder. The new library is added to your current library.

  • You can also work with swatches by using the Preset Manager.

  • Delete swatches. To delete a swatch, drag it to the trash icon at the bottom of the panel or Alt-click (Option-click on the Macintosh) the swatch.

  • Change the panel’s appearance. Click the panel menu in the upper-right corner to choose from Small or Large Thumbnail (swatch squares) or Small or Large List (swatch squares with a name).

  • Replace your current swatch library with a different library. Choose Replace Swatches from the panel menu. Choose a library from the Color Swatches folder.
